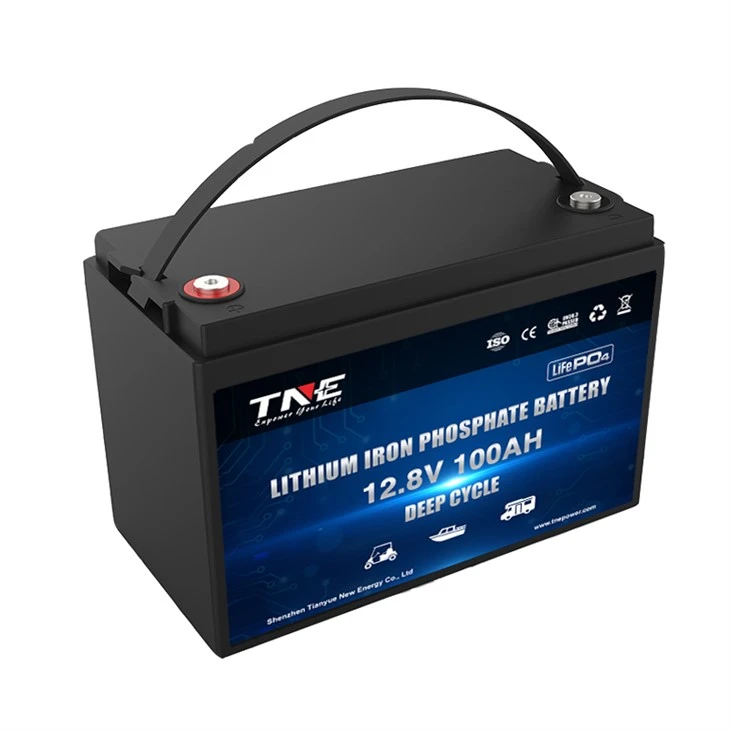

Our 12V lithium marine battery is 100Ah with bluetooth optional, by which you can monitor the battery status on time. TNE LFP12-100BT 12V 100Ah lithium marine battery can be dual purpose of starting and power back-up for your marine. The lithium battery will provide your marine with steady & long lasting power. Compared with conventional lead acid AGM or GEL batteries, the lithium ion batteries are much lighter in weight, longer run time, longer life span, less weight, faster voltage recovery after discharge and many more.
lithium ion Battery Features
- Lighter in weight, only 1/3 of lead acid battery
- 3-4 times longer life
- More energy with more power output
- Built-in intelligent battery management system
- IP65 waterproof
- Drop-in replacement
Specifications & Parameters
|
Model No. |
LFP12-100 |
|
|
Nominal Voltage |
12.8V |
|
|
Nominal Capacity |
100Ah |
|
|
Energy |
1280Wh |
|
|
Dimensions |
Length |
330±2mm |
|
Width |
172±2mm |
|
|
Container Height |
214±2mm |
|
|
Total Height (w/ terminal) |
220±2mm |
|
|
Weight |
Approx. 10.5KG |
|
|
Terminal Type |
M8 |
|
|
Enclosure Material |
ABS |
|
|
IP Grade |
IP65 |
|
|
BMS |
Max. Charge Current |
50A |
|
Max. Continuous Discharge Current |
100A |
|
|
Pulse Discharge Current (3s) |
200A |
|
|
Charge Cut-Off Voltage |
14.6V |
|
|
Discharge Cut-Off Voltage |
10.0V |
|
|
Operation Temperature Range |
Charge 0℃~55℃, Discharge -20℃~60℃, Storage -20℃~45℃ |
|
|
LCD Display |
Optional |
|
|
Bluetooth |
Optional |
|
| Heating Function | Optional | |
Our Lithium Battery Advantages
More Customizations For Battery
More Lithium Batteries
More Applications
Our lithium battery Factory
Honors & Certifications
FAQ
Q1: Can I connect the 12V lithium marine battery to achieve 24V or 36V trolling motor?
A: Yes, the 12V lithium batteries can be connect by serial to make 24V or 36V. However, as the lithium batteries has built-in BMS, you are suggested to take one 24V or 36V lithium battery which has only one BMS to manage the battery.
Q2: Do you provide ODM service for marine battery?
A: Yes, we have our own RD team for OEM customization.
Q3: Can I have samples to test before making official order?
A: Yes, we can provide samples for testing.
Q4: What is the production lead time for your 12V lithium marine motor battery?
A: For our standard lithium batteries, the production lead time is 2 weeks.
Q5: How long warranty do you provide for your 12V lithium marine battery?
A: We provide 5 years warranty for our lithium marine battery
