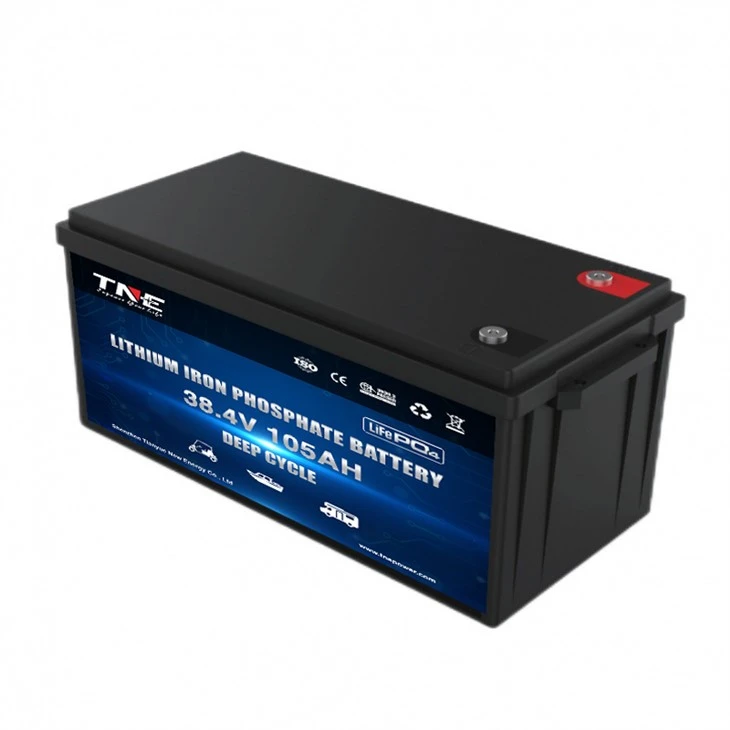

Built with Trolling motors in mind, this 36-volt deep cycle lithium marine battery gives you the power to fish from morning to night.

Engineered with Lithium Iron Phosphate (LiFePo4) technology this battery has twice the power, half the weight, and lasts 4 times longer than a sealed lead acid battery – providing exceptional lifetime value.

105 Amp hours (Ah) of capacity is optimal for power hungry 36V trolling motors. Ideal for deep cycle applications in marine environments where you need lots of power for a long time.

lithium ion Battery Features

Lighter in weight, only 1/3 of lead acid battery
3-4 times longer life
More energy with more power output
Built-in intelligent battery management system
IP65 waterproof
Drop-in replacement

Specifications & Parameters

Model No.	LFP36-100
Nominal Voltage	38.4V
Nominal Capacity	105Ah
Energy	4032Wh
Dimensions	Length	522±2mm
	Width	242±2mm
	Container Height	240±2mm
	Total Height (w/ terminal)	243±2mm
Weight	Approx. 30KG
Terminal Type	M8
Enclosure Material	ABS
IP Grade	IP65
BMS	Max. Charge Current	50A
	Max. Continuous Discharge Current	100A
	Pulse Discharge Current (3s)	200A
	Charge Cut-Off Voltage	43.8V
	Discharge Cut-Off Voltage	30.0V
Operation Temperature Range	Charge 0℃~55℃, Discharge -20℃~60℃, Storage -20℃~45℃
LCD Display	Optional
Bluetooth	Optional
Heating Function	Optional
