TNE LFP48-100RM 48V 100Ah 19" rack mount ESS (Energy Storage System) lithium batteries are specially designed for rack or cabinet solar energy storage system. Made of top-grade prismatic lithium cells with 6000+ cycle life, we offer 8-10 years warranty for our rack mount 5.2KW lithium battery and they are compatible with most of popular & well known inverter brands in market such as Victron, Huawei, SMA, Solis, Growatt, Deye, Voltronic,Sorotec and many more.

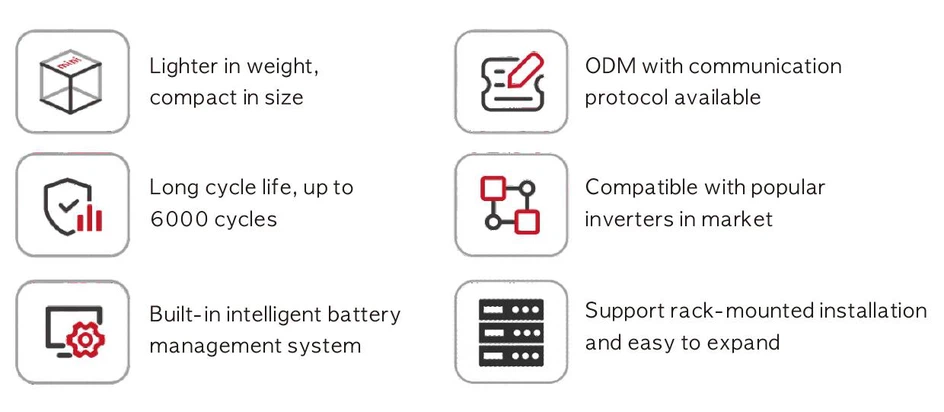

Rack Mount LiFePO4 Battery Features
Specifications & Parameters
|
Model |
LFP48-100RM |
LFP48-200RM |
|
Nominal Voltage |
51.2V |
51.2V |
|
Nominal Capacity |
100Ah |
200Ah |
|
Energy |
5120Wh |
10240Wh |
|
Cell Type |
Prismatic LiFePO4 |
|
|
Standard Charge Voltage |
58.4V (adjustable) |
|
|
Max. Charge Current |
100A |
|
|
Discharge Cut-off Voltage |
40V (adjustable) |
|
|
Max. Discharge Current |
100A |
|
|
Display |
LCD |
|
|
Communication |
RS485/RS232/CAN (optional) |
|
|
Cycle Life |
≥6000 Cycles (80%DOD) |
|
|
Charge Temperature Range |
0℃~65℃ |
|
|
Discharge Temperature Range |
-20℃~65℃ |
|
|
Parallels Ability |
Max. 8 |
Max. 15 |
|
Dimensions |
442x430x178mm |
442x520x320mm |
|
Weight |
47.5Kg |
82Kg |
Compatible Inverters

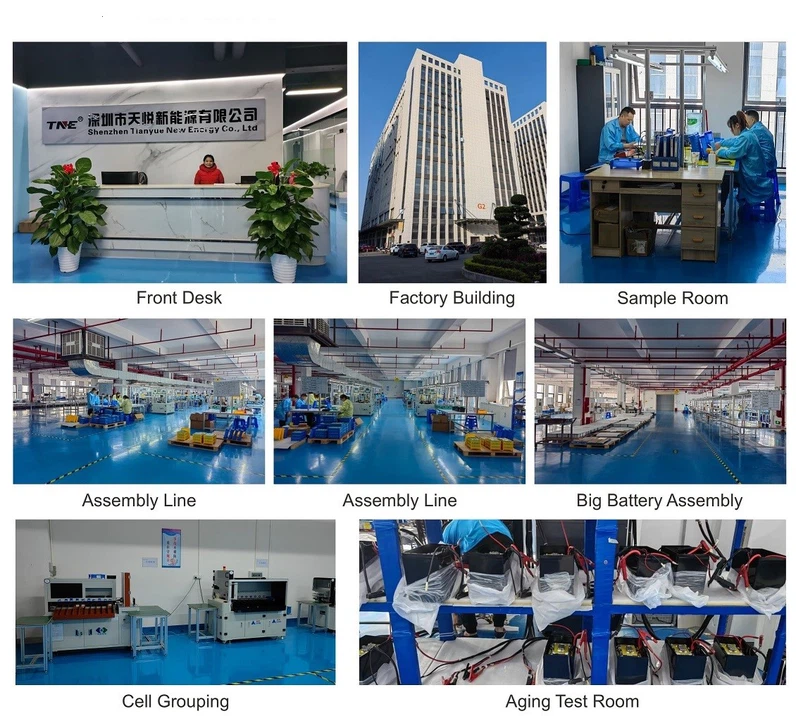

Our Lithium Battery Factory
Company Honors & Certifications

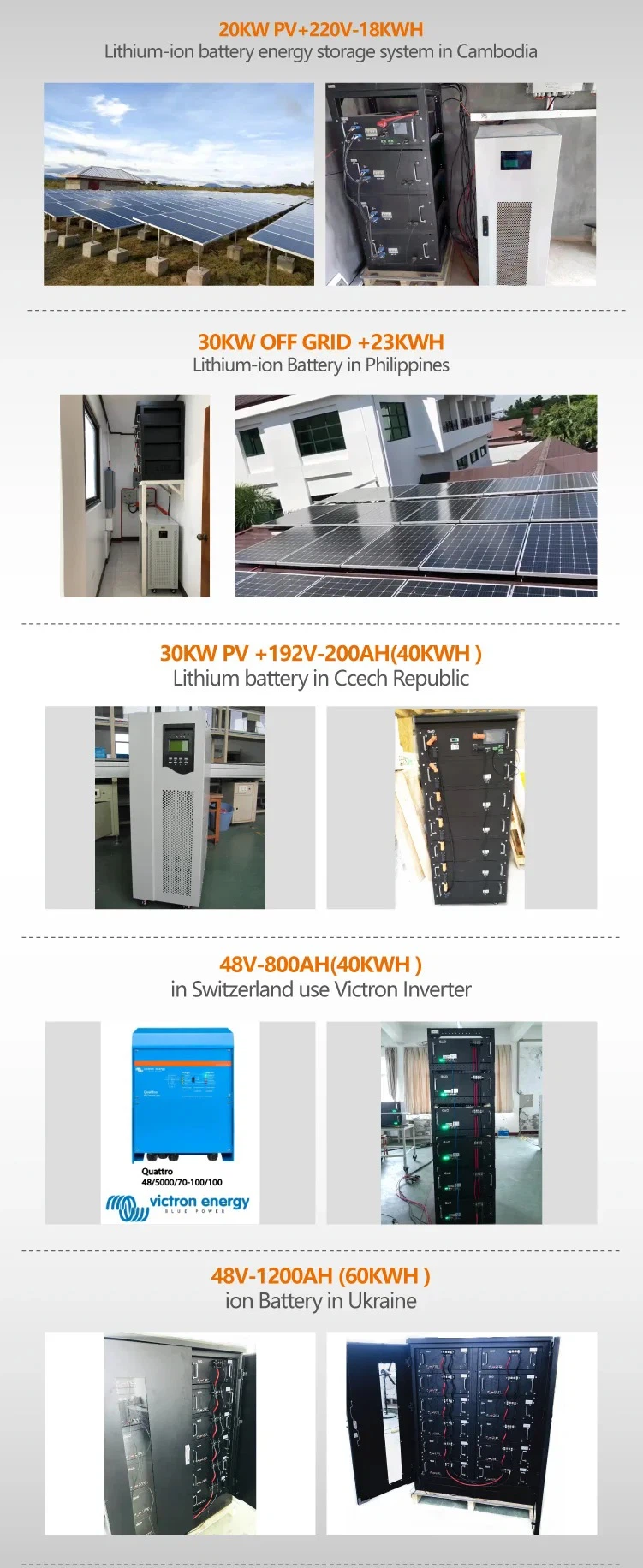

Projects

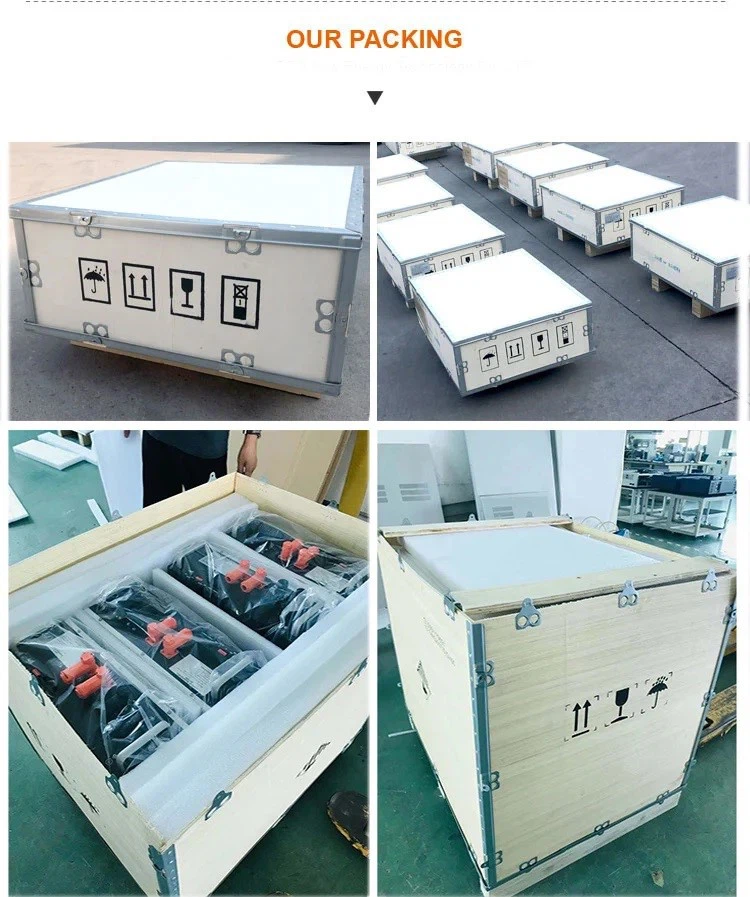

Packing
FAQ
Q1. How to insatll and use the product?
A: We have the English teaching manual and videos; All the videos about every step of machine Disassembly, assembly, operation will be sent to our customers.
Q2. What if I don't have export experience?
A: We have reliable forwarder agent which can ship items to you by sea/air/Express to your doorstep.Any way, we will help you choose the most suitable shipping service.
Q3. How is your technical support?
A:We provide lifetime online support through Whatsapp/ Wechat/ Email. Any problem after delivery, we will offer you video call anytime,our engineer will also go to oversea help our customers if necessary.
Hot Tags: LFP48-100RM 48V 100Ah 5KWh Rack Mount Lithium Solar Battery, China LFP48-100RM 48V 100Ah 5KWh Rack Mount Lithium Solar Battery manufacturers, suppliers, factory, lifepo4 deep cycle solar battery, server rack lifepo4 battery bank, solar inverter lifepo4 battery, 48v 100ah rack mount battery, rack mount lifepo4 battery pack, 12volt lithium solar battery
