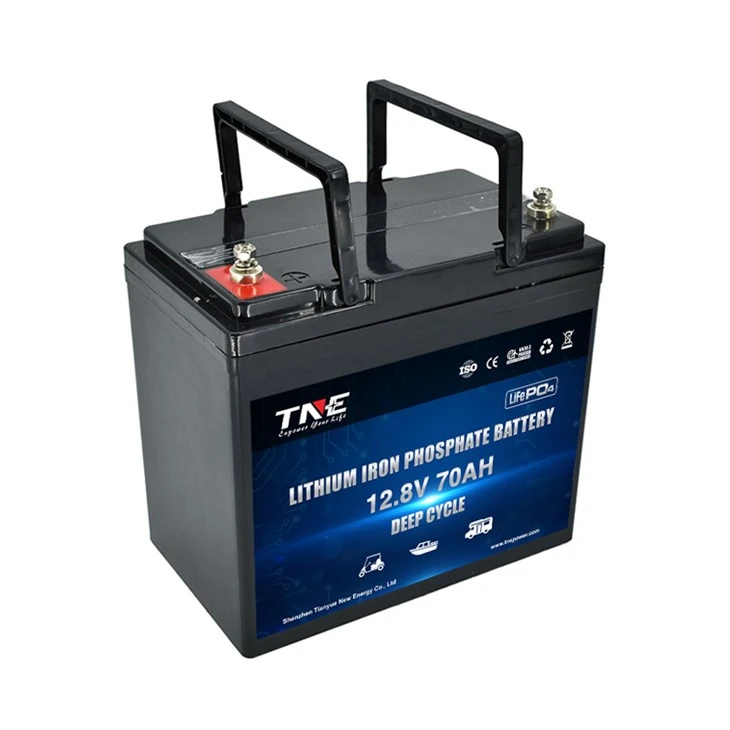

Do you want to find a lightweight battery for your trolling motor when you go out for fishing? Our 12V lithium ion batteries for trolling motor is your best choice. Our 12V 70Ah lithium battery for trolling motor is only 8KG while the same lead acid AGM battery is about 18kg. Our 12V 70Ah lithium trolling motor battery can provide your trolling motor with steady & long lasting power. Compared with conventional lead acid AGM or GEL batteries, our lithium ion trolling motor batteries are featured by longer run time, longer life span, less weight, faster voltage recovery after deep discharge and IP65 water resistance.
12V Lithum Ion Trolling motor Battery Features
- Lighter in weight
- 3-4 times longer life
- More energy with more power output
- Pattented active balancing module prolong the battery life
- IP65 waterproof
- Drop-in replacement
Specifications & Parameters
|
Model No. |
LFP12-70 |
|
|
Nominal Voltage |
12.8V |
|
|
Nominal Capacity |
70Ah |
|
|
Energy |
896Wh |
|
|
Dimensions |
Length |
230±2mm |
|
Width |
138±2mm |
|
|
Container Height |
208±2mm |
|
|
Total Height (w/ terminal) |
208±2mm |
|
|
Weight |
Approx. 8.0KG |
|
|
Terminal Type |
M8 |
|
|
Enclosure Material |
ABS |
|
|
IP Grade |
IP65 |
|
|
BMS |
Max. Charge Current |
35A |
|
Max. Continuous Discharge Current |
70A |
|
|
Pulse Discharge Current (3s) |
200A |
|
|
Charge Cut-Off Voltage |
14.6V |
|
|
Discharge Cut-Off Voltage |
10.0V |
|
|
Operation Temperature Range |
Charge 0℃~55℃, Discharge -20℃~60℃, Storage -20℃~45℃ |
|
|
LCD Display |
Optional |
|
| Separate Charging Port | Optional | |
|
Bluetooth |
Optional |
|
Our Lithium ion Trolling Motor Battery Advantages
More Customizations
More Trolling Motor Batteries
Our lithium battery Factory
Company Honors & Certifications
FAQ
Q1: Can I connect the 12V lithium battery to achieve 24V or 36V for trolling motor?
A: Yes, the 12V lithium batteries can be connect by serial to make 24V or 36V. However, as the lithium batteries has built-in BMS, you are suggested to take one 24V or 36V lithium battery which has only one BMS to manage the battery.
Q2: Can I make my brand for the 12V lithium trolling motor battery?
A: Yes, we can provide private label service and ODM service for customization.
Q3: Can I have samples to test before making official order?
A: Yes, we can provide samples for testing.
Q4: What is the production lead time of you 12V 70Ah lithium ion trolling motor battery?
A: For our standard lithium batteries, the production lead time is 2 weeks.
Q5: How long warranty will you provide for your 12V lithium trolling motor battery?
A: We provide 5 years warranty for our 12V lithium battery for trolling motor.
Q6: Do you provide drop shipment for your 70Ah lithium trolling motor battery?
A: Yes, we can provide DDP shipment to your door.
