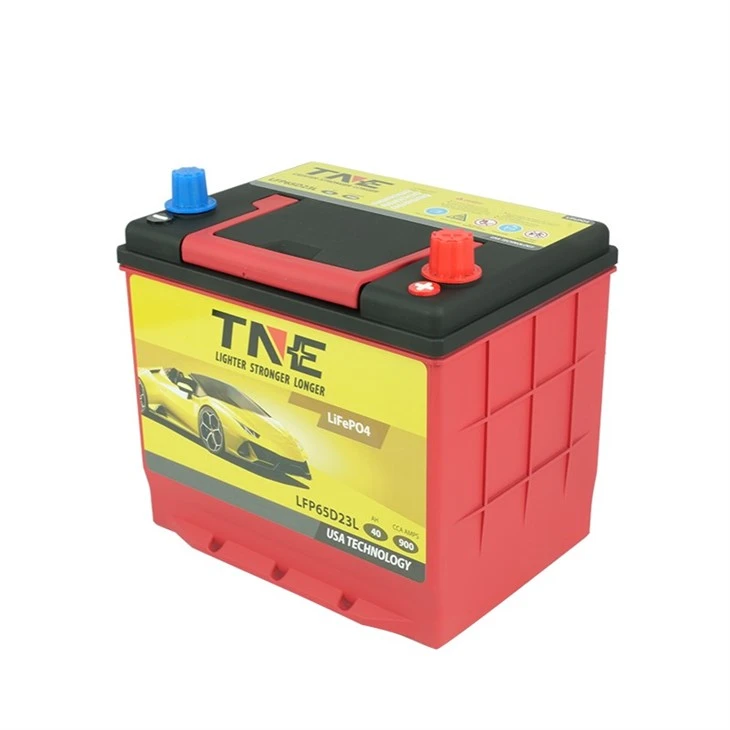

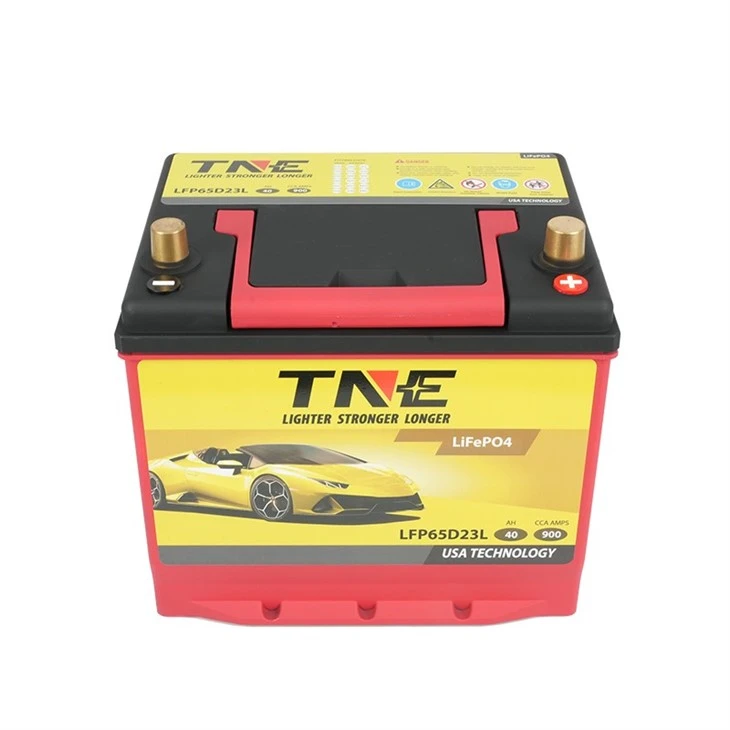

The lithium iron phosphate (LiFePO4) car battery is using the cutting-edge lithium battery to drop-in replace the conventional lead acid batteries for starting the vehicle. Compared with conventional lead acid flooded or stop-start batteries, the lithium automotive batteries are featured by super light weighted, much higher cranking amps, longer life span, faster charging capability, better audio stereo acoustics output and fuel saving. They can meet the increasing demand of less weight, more powerful and environment friendly purpose of racing cars, supercars, private passenger cars and electric vehicles where a low voltage 12V starter battery is needed.
Specifications & Parameters
|
Model No. |
LFP65D23L |
|
|
Nominal Voltage |
12.8V |
|
|
Nominal Capacity |
40Ah |
|
|
Cold Cranking Amps |
1000A |
|
|
Dimensions |
Length |
238±2mm |
|
Width |
172±2mm |
|
|
Container Height |
200±2mm |
|
|
Total Height (w/ terminal) |
220±2mm |
|
|
Weight |
Approx. 5.5KG |
|
|
Cell Type |
Hight Rate Pouch Cell |
|
|
Polarity |
0 |
|
|
Terminal Type |
STANDARD |
|
|
Hold Down |
B1 |
|
|
Enclosure Material |
PP (Polypropylene) |
|
|
LCD Display |
Optional |
|
|
Main Switch |
Optional |
|
Other Available Models
|
Model No. |
Voltage (V) |
Capacity (Ah) |
CCA (A) |
Dimensions L*W*H*TH (mm) |
Polarity |
Hold Down |
Weight (KG) |
|||
|
LFP40B19L |
12.8 |
20 |
600 |
196 |
129 |
200 |
220 |
0 |
B0 |
3.5 |
|
LFP4019R |
12.8 |
20 |
600 |
196 |
129 |
200 |
220 |
1 |
B0 |
3.5 |
|
LFP46B24L |
12.8 |
30 |
800 |
237 |
129 |
200 |
220 |
0 |
B0 |
4.5 |
|
LFP46B24R |
12.8 |
30 |
800 |
237 |
129 |
200 |
220 |
1 |
B0 |
4.5 |
|
LFP65D23L |
12.8 |
36 |
900 |
238 |
172 |
200 |
220 |
0 |
B1 |
5.5 |
|
LFP65D23R |
12.8 |
36 |
900 |
238 |
172 |
200 |
220 |
1 |
B1 |
5.5 |
|
LFP80D26L |
12.8 |
54 |
1350 |
260 |
172 |
200 |
224 |
0 |
B1 |
7.5 |
|
LFP80D26R |
12.8 |
54 |
1350 |
260 |
172 |
200 |
224 |
1 |
B1 |
7.5 |
|
LFP95D31L |
12.8 |
72 |
1500 |
305 |
172 |
200 |
224 |
0 |
B1 |
9.7 |
|
LFP95D31R |
12.8 |
72 |
1500 |
305 |
172 |
200 |
224 |
1 |
B1 |
9.7 |
|
LFP-LB1 |
12.8 |
36 |
900 |
207 |
175 |
190 |
190 |
0 |
B13 |
5.0 |
|
LFP-L2 |
12.8 |
36 |
900 |
240 |
175 |
190 |
190 |
0 |
B13 |
5.5 |
|
LFP-LB3 |
12.8 |
54 |
1350 |
276 |
175 |
175 |
175 |
0 |
B13 |
7.5 |
|
LFP-L3 |
12.8 |
54 |
1350 |
276 |
175 |
190 |
190 |
0 |
B13 |
7.5 |
|
LFP-LB4 |
12.8 |
72 |
1800 |
315 |
175 |
175 |
175 |
0 |
B13 |
9.7 |
|
LFP-L4 |
12.8 |
72 |
1800 |
315 |
175 |
190 |
190 |
0 |
B13 |
9.7 |
|
LFP-L5 |
12.8 |
76 |
2250 |
352 |
175 |
190 |
190 |
0 |
B13 |
10 |
|
LFP-L6 |
12.8 |
76 |
2250 |
393 |
175 |
190 |
190 |
0 |
B13 |
10 |
|
LFP-86 |
12.8 |
36 |
900 |
238 |
172 |
170 |
190 |
1 |
B1 |
5.2 |
Lithium VS Lead Acid Car Battery
Our Battery Advantages
Our Factory
Honor & Certificates
FAQ
Q1: Can they be drop-in replacement of the original lead acid batteries?
A: Yes, the lithium battery size is the same as the lead acid battery and can drop-in replace the original lead acid battery. Sometimes, you need to check if the alternator can support 12.8V.
Q2: Does the lithium car battery have BMS ?
A: Yes, there is built-in BMS inside to protect battery from over-charging, over-discharging, over-heat and short circuit.
Q3: What is your MOQ and do you provide private labeling service?
A: Our MOQ is 50pcs/model and we provide private labeling service and can design the package with your logo free of charge.
Q4: Do you provide samples for testing?
A: Yes, samples are available for testing.
