DIN L5 12V 76Ah lithium car battery is with OEM case size 352*175*190mm and its CCA can be up to 2250A. It integrates the lastest LFP technology and our paternted BMS. It can be drop-in fitment for most of vehicles in the market.
Specifications & Parameters
|
Model No. |
LFP-L5 |
|
|
Nominal Voltage |
12.8V |
|
|
Nominal Capacity |
76Ah |
|
|
Cold Cranking Amps |
2250A |
|
|
Dimensions |
Length |
352±2mm |
|
Width |
175±2mm |
|
|
Container Height |
190±2mm |
|
|
Total Height (w/ terminal) |
190±2mm |
|
|
Weight |
Approx. 10.0KG |
|
|
Cell Type |
Hight Rate Pouch Cell |
|
|
Polarity |
0 |
|
|
Terminal Type |
STANDARD |
|
|
Hold Down |
B13 |
|
|
Enclosure Material |
PP (Polypropylene) |
|
|
LCD Display |
Optional |
|
|
Main Switch |
Optional |
|
Other Available Models
|
Model No. |
Voltage (V) |
Capacity (Ah) |
CCA (A) |
Dimensions L*W*H*TH (mm) |
Polarity |
Hold Down |
Weight (KG) |
|||
|
LFP40B19L |
12.8 |
20 |
600 |
196 |
129 |
200 |
220 |
0 |
B0 |
3.5 |
|
LFP4019R |
12.8 |
20 |
600 |
196 |
129 |
200 |
220 |
1 |
B0 |
3.5 |
|
LFP46B24L |
12.8 |
30 |
800 |
237 |
129 |
200 |
220 |
0 |
B0 |
4.5 |
|

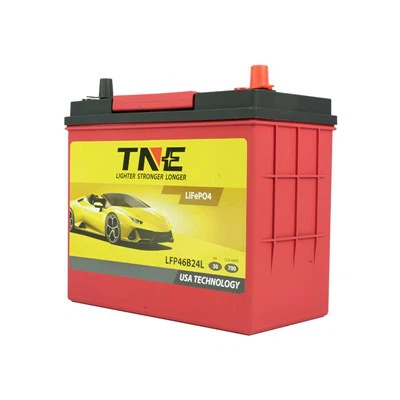

LFP46B24R |
12.8 |
30 |
800 |
237 |
129 |
200 |
220 |
1 |
B0 |
4.5 |
|
LFP65D23L |
12.8 |
36 |
900 |
238 |
172 |
200 |
220 |
0 |
B1 |
5.5 |
|
LFP65D23R |
12.8 |
36 |
900 |
238 |
172 |
200 |
220 |
1 |
B1 |
5.5 |
|
LFP80D26L |
12.8 |
54 |
1350 |
260 |
172 |
200 |
224 |
0 |
B1 |
7.5 |
|
LFP80D26R |
12.8 |
54 |
1350 |
260 |
172 |
200 |
224 |
1 |
B1 |
7.5 |
|
LFP95D31L |
12.8 |
72 |
1500 |
305 |
172 |
200 |
224 |
0 |
B1 |
9.7 |
|
LFP95D31R |
12.8 |
72 |
1500 |
305 |
172 |
200 |
224 |
1 |
B1 |
9.7 |
|
LFP-LB1 |
12.8 |
36 |
900 |
207 |
175 |
190 |
190 |
0 |
B13 |
5.0 |
|
LFP-L2 |
12.8 |
36 |
900 |
240 |
175 |
190 |
190 |
0 |
B13 |
5.5 |
|
LFP-LB3 |
12.8 |
54 |
1350 |
276 |
175 |
175 |
175 |
0 |
B13 |
7.5 |
|
LFP-L3 |
12.8 |
54 |
1350 |
276 |
175 |
190 |
190 |
0 |
B13 |
7.5 |
|
LFP-LB4 |
12.8 |
72 |
1800 |
315 |
175 |
175 |
175 |
0 |
B13 |
9.7 |
|
LFP-L4 |
12.8 |
72 |
1800 |
315 |
175 |
190 |
190 |
0 |
B13 |
9.7 |
|
LFP-L5 |
12.8 |
76 |
2250 |
352 |
175 |
190 |
190 |
0 |
B13 |
10 |
|
LFP-L6 |
12.8 |
76 |
2250 |
393 |
175 |
190 |
190 |
0 |
B13 |
10 |
|
LFP-86 |
12.8 |
36 |
900 |
238 |
172 |
170 |
190 |
1 |
B1 |
5.2 |
Lithium VS Lead Acid Car Battery

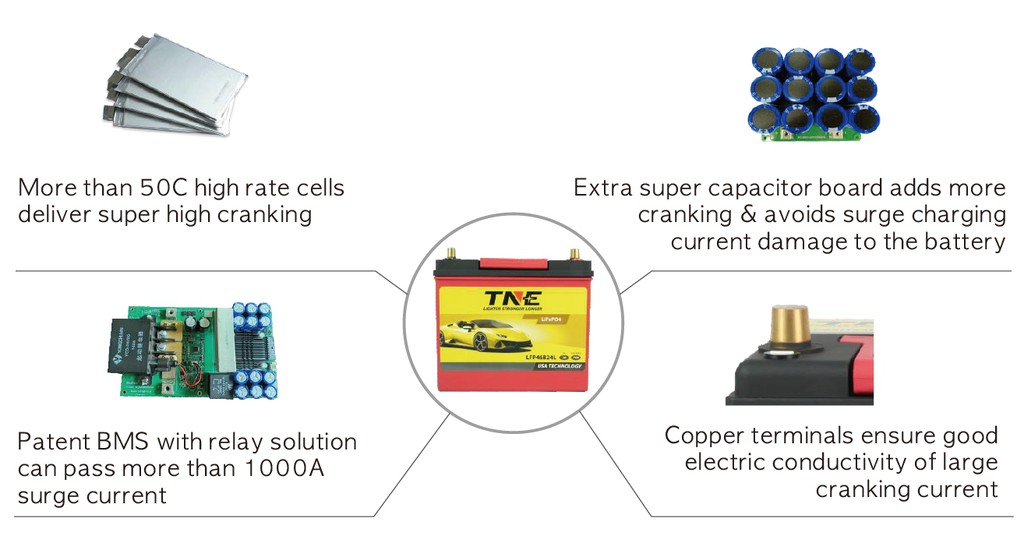

Our Battery Advantages
