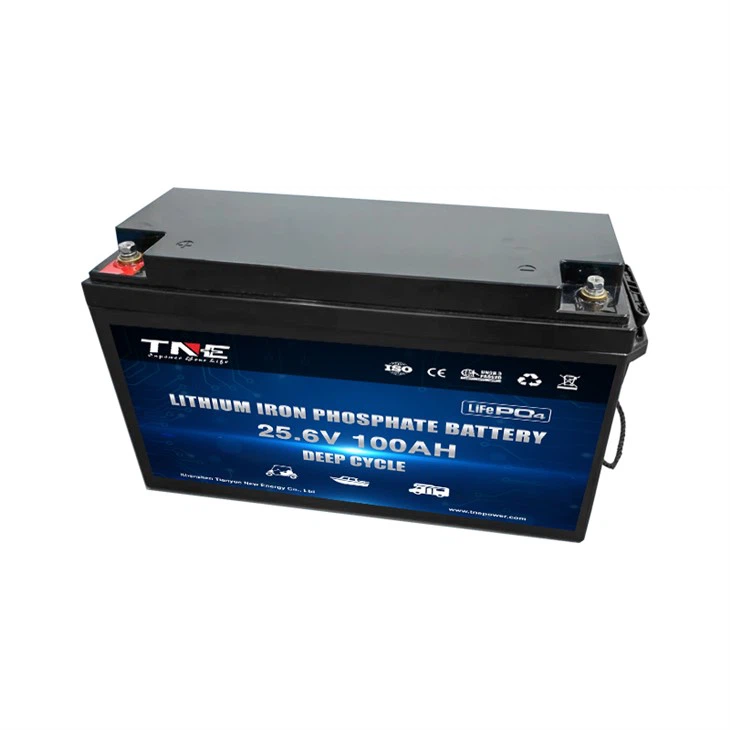

Our 24V lithium solar battery is a perfect fit for 24V off grid solar system and it is totally maintenance free with IP65 water proof. Integrated with A grade 6000 cycles lithium cell, the 24V lithium battery has more than 10 years design life and the built-in BMS protects battery from over-charge, over-discharge, short circuit and over temperature.

lithium ion Battery Features

Super light weighted
6000 cycles at 100% DOD
Wide operation temperature
Tripple safety protection
IP65 waterproof

Specifications & Parameters

Model No.	LFP24-100
Nominal Voltage	25.6V
Nominal Capacity	100Ah
Energy	2560Wh
Dimensions	Length	502±2mm
	Width	186±2mm
	Container Height	243±2mm
	Total Height (w/ terminal)	243±2mm
Weight	Approx. 20KG
Terminal Type	M8
Enclosure Material	ABS
IP Grade	IP65
BMS	Max. Charge Current	50A
	Max. Continuous Discharge Current	100A
	Pulse Discharge Current (3s)	200A
	Charge Cut-Off Voltage	29.2V
	Discharge Cut-Off Voltage	20.0V
Operation Temperature Range	Charge 0℃~55℃, Discharge -20℃~60℃, Storage -20℃~45℃
LCD Display	Optional
Bluetooth	Optional
Heating Function	Optional
